Cut Out Fuse

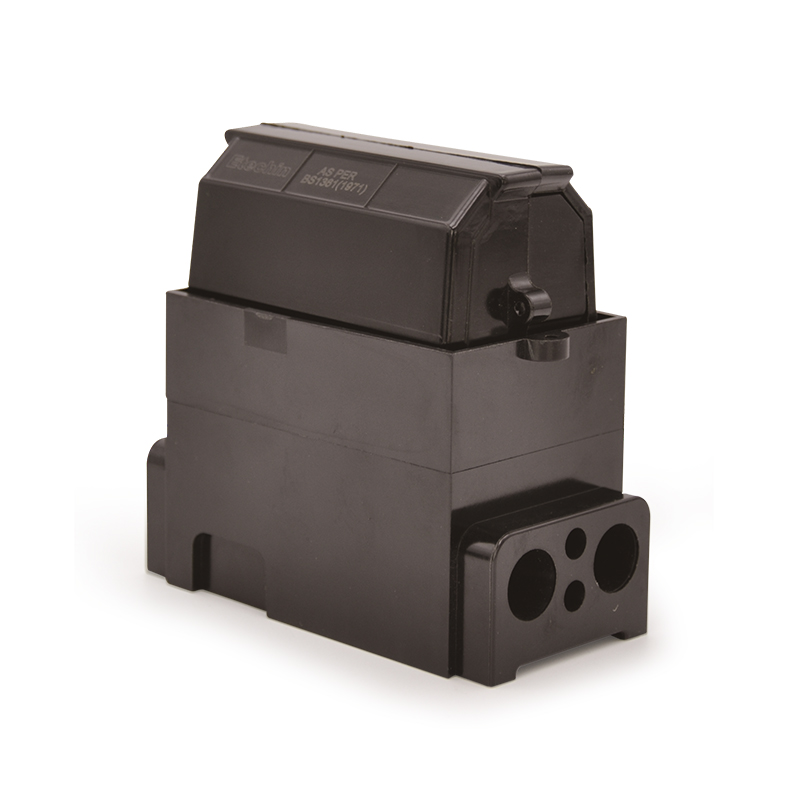

The Cutout Fuse provides reliable protection for single-phase(SP) or(SPN) power distribution systems. It supports Low Voltage 15A to 100A current ratings and is compatible with loop-in/loop-out cable connections. Manufactured with black bakelite housing with copper conductors, it ensures high durability and safe performance. Integrated sealing and interlock features enhance security and prevent unauthorized access.
Products Information
| Construction | ||
| Body, base and cover | Bakelite in black colour | |
| Terminal blocks | Brass (Tin plated on Phase) | |
| Fuse link contacts | Copper | |
| Product characteristics | ||
| 57 x 22mm Type IIa BS 1361 | A | 60/80 |
| 57 x 30mm Type IIb BS 1361 | A | 100 |
| Performance | ||
| Rated voltage | V | 240/415V A.C. |
| Max rated current | A | 100 |
| Supply frequency | Hz | 50-60 |
| Flammability rating | self-extinguishing 30 seconds at 960° C | |
| Recommended terminal torque | 3.25Nm | |
| Fuse short circuit rating | 33kA at 0.3pf | |
Application: Designed for reliable protection in single-phase or SPN electrical systems.
Material & Design: Durable black bakelite housing with copper conductors for high safety and modern panel aesthetics.
Safety Features: Built-in sealing and interlock system prevents unauthorized access and enhances security.
Technical Range: Supports current ratings from 15A–100A, with loop-in/loop-out cable options.
Use Cases: Ideal for industrial, commercial, and residential (House) power distribution.
Fully interlocked components for enhanced safety
Sealable design to prevent tampering or unauthorised access
Universal body size fits ratings from 15A to 100A
Terminals support cables up to 35mm² in size
Loop-in and loop-out connections for easy cabling
