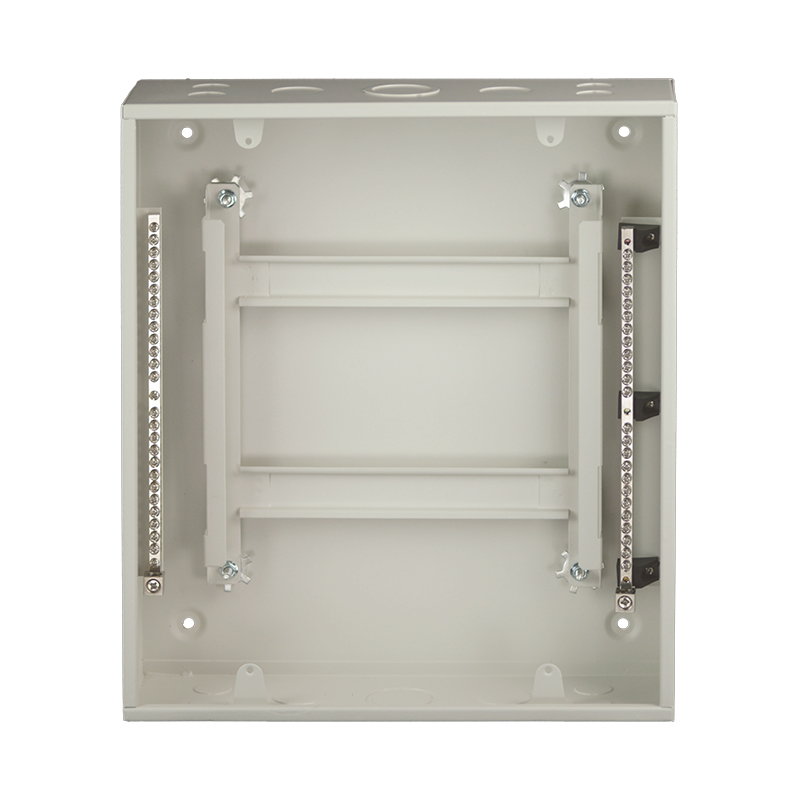

Product Introduction
• Galvanized 1.2/1/0.8mm sheet
• No. of Row: upto 6Row(max one row 18W)
• Transparent window
• Plastic Lock/Metal Lock
• Surface/flush type
• Adjusted mounting plate
• Powder coating Ral7035 texture
• IP42 for Metal Enclosure
• IEC61439
| Item NO. | Spec | H1 | H | W1 | W | D1 | D | A | B |
| DS07MCB-1R4 | 1R×4W | 545 | 560 | 375 | 385 | 117 | 136 | 434 | 294 |
| DS07MCB-1R6 | 1R×6W | 599 | 614 | 375 | 385 | 117 | 136 | 448 | 294 |
| DS07MCB-1R8 | 1R×8W | 653 | 668 | 375 | 385 | 117 | 136 | 542 | 294 |
| DS07MCB-1R10 | 1R×10W | 707 | 722 | 375 | 385 | 117 | 136 | 596 | 294 |
| DS07MCB-1R12 | 1R×12W | 761 | 776 | 375 | 385 | 117 | 136 | 650 | 294 |
| DS07MCB-1R14 | 1R×14W | 815 | 830 | 375 | 385 | 117 | 136 | 704 | 294 |
| DS07MCB-1R16 | 1R×16W | 869 | 884 | 375 | 385 | 117 | 136 | 758 | 294 |
| DS07MCB-1R18 | 1R×18W | 815 | 830 | 375 | 385 | 117 | 136 | 704 | 294 |
