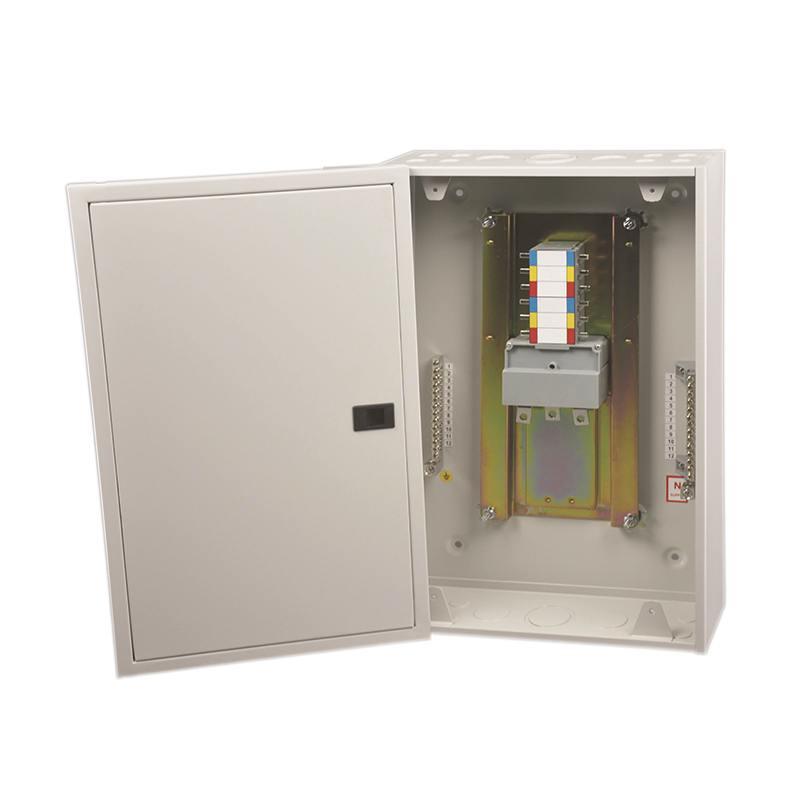

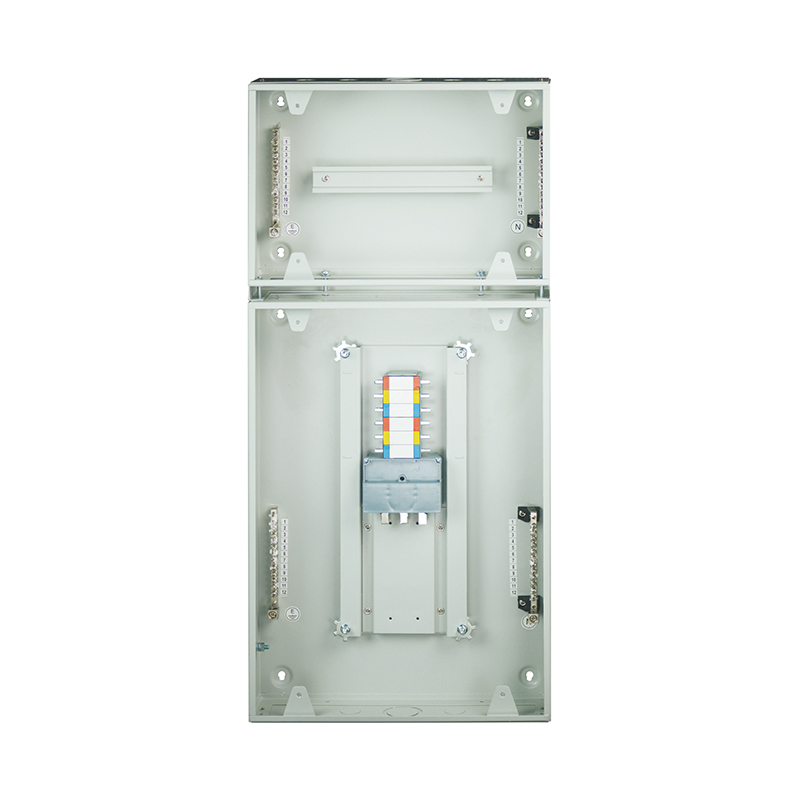

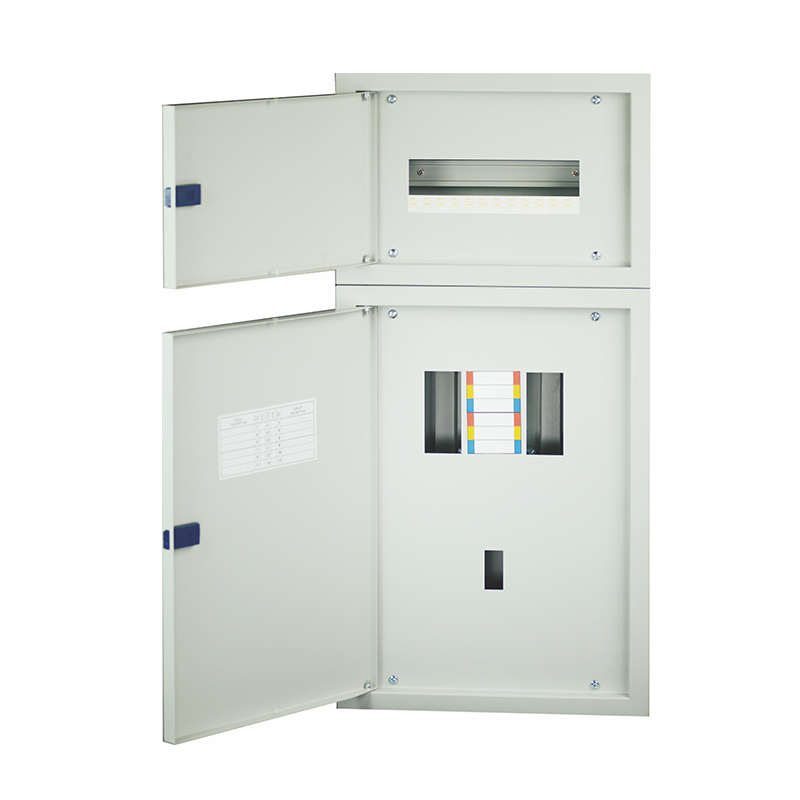

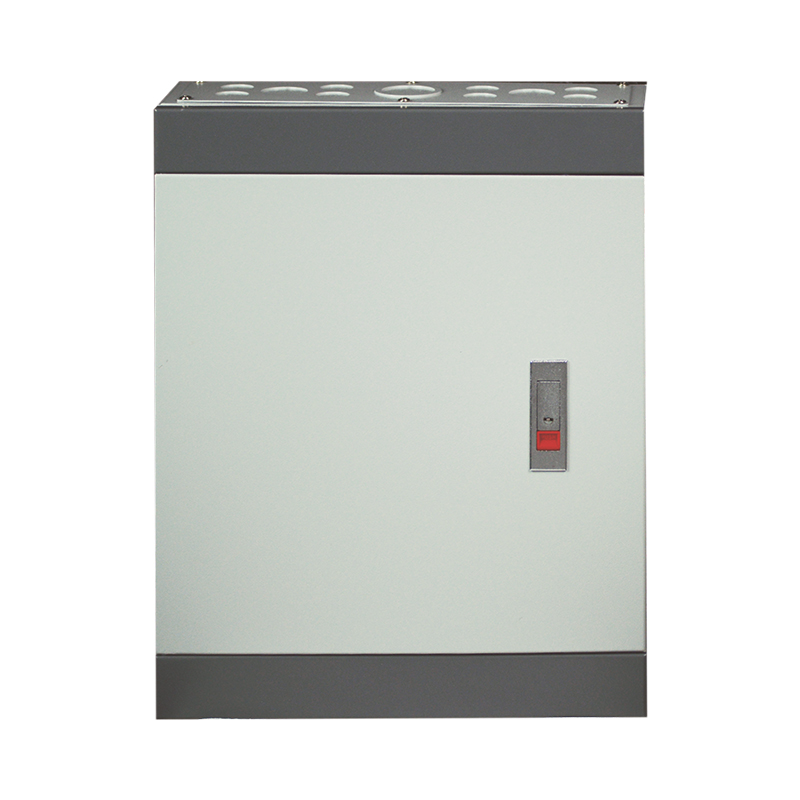

Product Introduction
• Galvanized 1.2mm sheet
• Main switch: MCB, ISOLATOR, ELCB, MCCB up to 150A
• Qutgoing: upto.Z2poles way. MCB
• Plastic Lock/Metal Lock
• Surface/flush type
• Adjusted mounting plate
• Powder coating Ral7035 texture
• IP42 for Metal Enclosure
• IEC61439-1
• Extension Board 12poles way on top and bottom design
| Item NO. | Spec | H1 | H | W1 | W | D1 | D | A1 | A | B |
| DT02MCB-4 | 3P×4W | 830 | 840 | 340 | 350 | 108 | 110 | 207 | 486 | 320 |
| DT02MCB-6 | 3P×6W | 884 | 894 | 340 | 350 | 108 | 110 | 207 | 486 | 320 |
| DT02MCB-8 | 3P×8W | 938 | 948 | 340 | 350 | 108 | 110 | 207 | 486 | 320 |
| DT02MCB-10 | 3P×10W | 992 | 1002 | 340 | 350 | 108 | 110 | 207 | 486 | 320 |
| DT02MCB-12 | 3P×12W | 1046 | 1056 | 340 | 350 | 108 | 110 | 207 | 486 | 320 |
| DT02MCB-14 | 3P×14W | 1100 | 1110 | 340 | 350 | 108 | 110 | 207 | 486 | 320 |
| DT02MCB-16 | 3P×16W | 1154 | 1154 | 340 | 350 | 108 | 110 | 207 | 486 | 320 |
