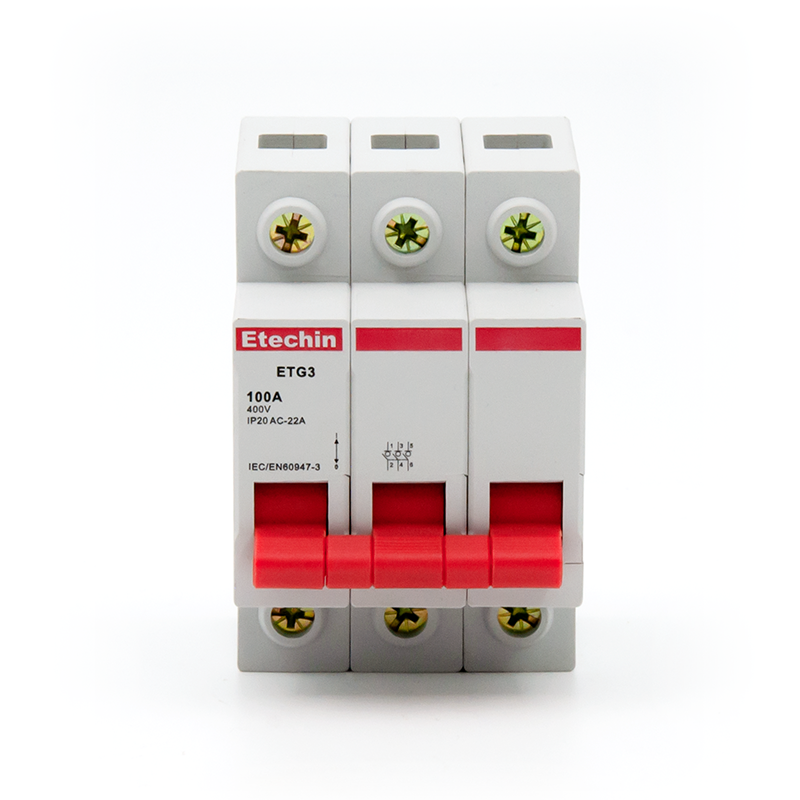

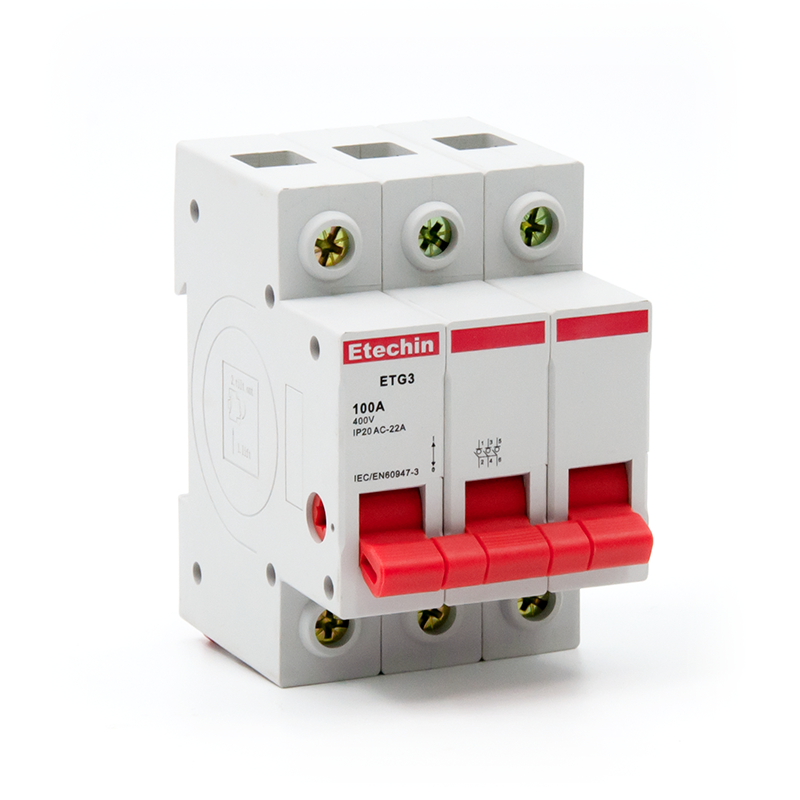

ETG3-100 series isolator is suitable for using in the distributing and controlling loop with AC 50Hz or 60Hz, rated working voltage 230 or 400V and below. It is mainly used for terminal electrical main switch, also can be used for controlling differentmotor, small power electrical and lighting , the low-voltage terminal distribution in the industry, civil building such as homeand residence, energy, communication, infrastructure, lighting distribution system or motor distribution and other fields.

ETG3-100 series isolator is in complied with GB14048.3/ IEC60947-3 standards standard.
The rated current is 100A or 125AThe rated working voltage is 240 or 415V and below.

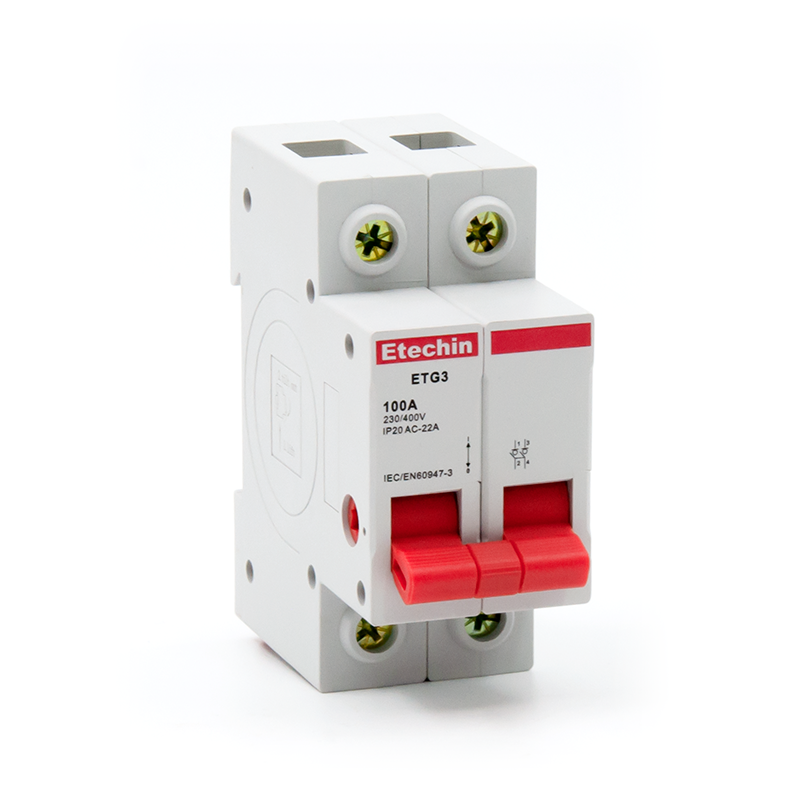

The pole number of the breaker can be classified as : single pole (1p), double poles (2p), three poles (3p), and four poles(4p).There is a position indicator equipped on the products, Red is on, Green is off.
The isolator terminals are IP20 protection which is designed for finger and hand touch safe to keep the safety during
installation.The isolator can work reliably in harsh environment, in ambient temperature from -5°C to 50°C.

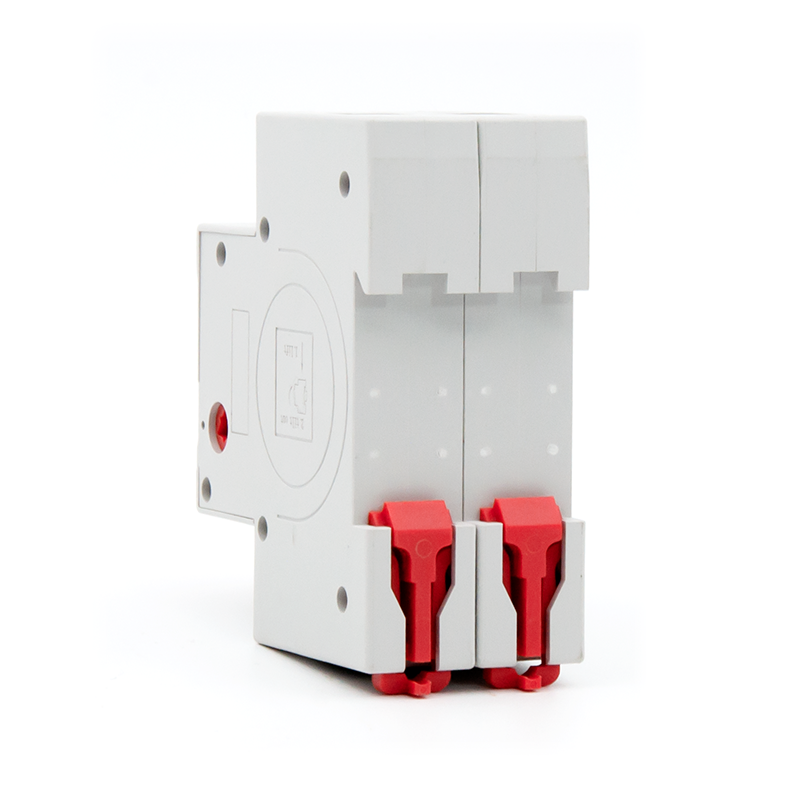

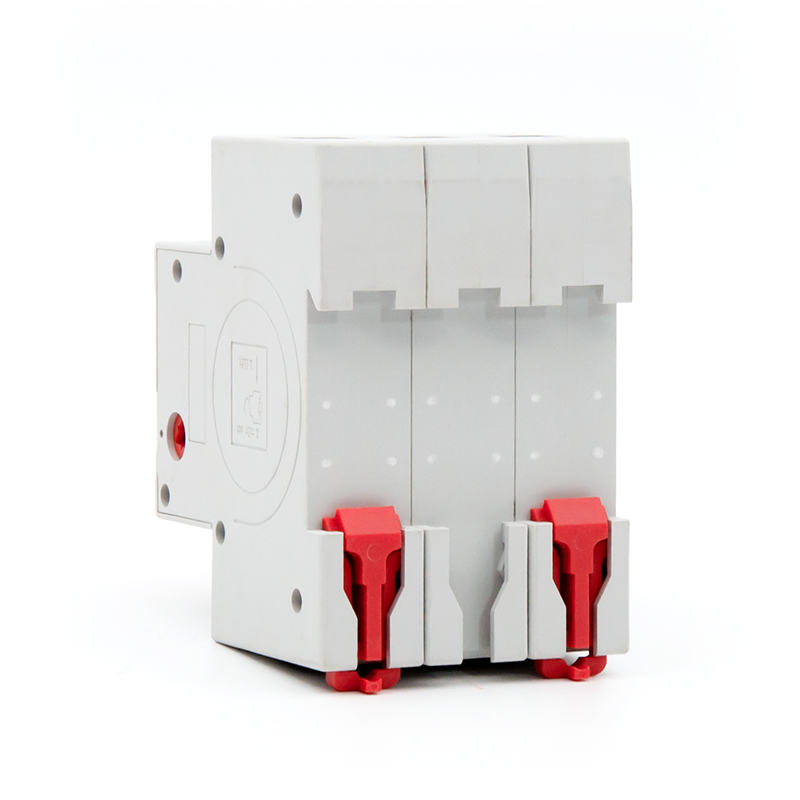

It’s mounting type is to be mounted on din rail EN60715 35mm.
