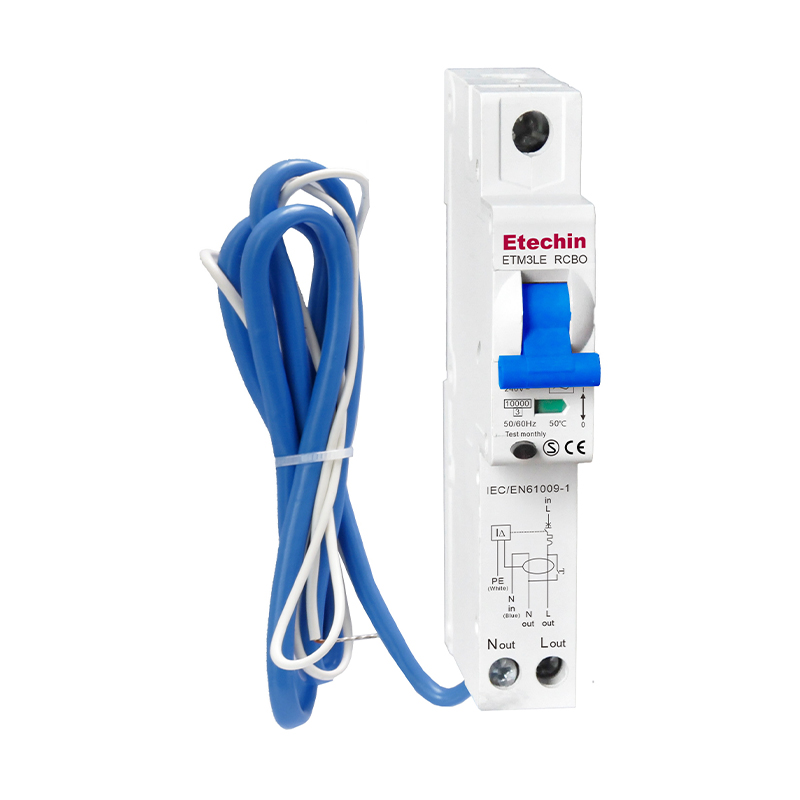

ETM3LE RCBO
ETM3LE Series Electronic RCBO (Residual Current Breaker with Overcurrent Protection)
Designed for comprehensive circuit safety, the ETM3LE offers both residual current protection and overload/short-circuit protection in one compact device. Suitable for residential, commercial, and light industrial applications, it supports DIN rail mounting and is ideal for use in 1P+N systems.
Rated Current: 6A, 10A, 16A, 20A, 25A, 32A, 40A
Tripping Curves: B and C curve options for different load types
Residual Sensitivity: 30mA or 100mA
Breaking Capacity: 6kA or 10kA
Voltage: AC 240/415V
Compliance: Meets IEC/EN 61009-1 standards
OEM support available
The ETM3LE ensures fast response to leakage currents and overcurrent faults, enhancing safety in low-voltage electrical systems.
Product Introduction
The ETM3LE series RCBO (Residual Current Circuit Breaker with Overcurrent Protection) is designed for use in low-voltage distribution systems, offering a combination of earth leakage protection, overload protection, short-circuit protection, and circuit isolation. It’s well-suited for a variety of applications, including residential buildings, industrial setups, energy facilities, communication systems, infrastructure, lighting networks, and motor circuits.
By detecting leakage currents, the ETM3LE helps protect individuals from electric shock. At the same time, it prevents damage to electrical circuits and equipment caused by overloads or short circuits, reducing the risk of secondary faults.
⚙️ Key Features:
Standard Compliance: Built in accordance with IEC 61009-1
Breaking Capacity: Available in 6kA or 10kA
Short-Circuit Tripping Curve: Options include B and C curves, suitable for various load types
Rated Current Range:
6A, 10A, 16A — commonly used for lighting
20A to 32A — typical for kitchens, bathrooms, or air conditioners
40A — suitable for heavier loads or main lines
Leakage Sensitivity Options:
10mA, 30mA — ideal for wet areas like bathrooms or kitchens where personal protection is critical
100mA — suitable for general circuit protection
Residual Current Types:
AC type — responds to sinusoidal AC leakage
A type — detects both sinusoidal AC and pulsed DC leakage currents
Rated Voltage: 230V / 240V (Phase + Neutral)
Pole Type: 1P+N
Visual Status Indicator: Red = ON, Green = OFF
Terminal Protection: IP20-rated, ensuring finger-safe installation
Temperature Range: Operates reliably in environments from -5°C to +50°C
🔧 Durability & Installation:
Electrical lifespan: Up to 8,000 operations
Mechanical lifespan: Up to 20,000 operations
(Well above the IEC minimum of 4,000 and 10,000 respectively)Mounting: DIN rail installation (EN60715, 35mm standard)
| Standard | IEC/EN61009-1 |
|---|---|
| No. of poles: | 1P+N (25mm width) |
| Voltage: | 230/240V (Phase & Neutral) |
| Characteristics: | Type B,C |
| Type: | A,AC |
| Rating: | 6,10,16,20,25,32,40 A |
| Sensitivity current: | 30 mA, 100 mA |
| Breaking capacity: | 6/10 kA at 240/415 V |
| Residual current off time: | ≤0.1S |
| Electrical Endurance: | 4000 |
| Mechanical Endurance: | 10000 |
| Reference ambient temp： | 50℃ |
| Protection: | Overload, short circuit and leakage |
| Type of terminal: | Plug in type Input |
| Wiring type Output |
