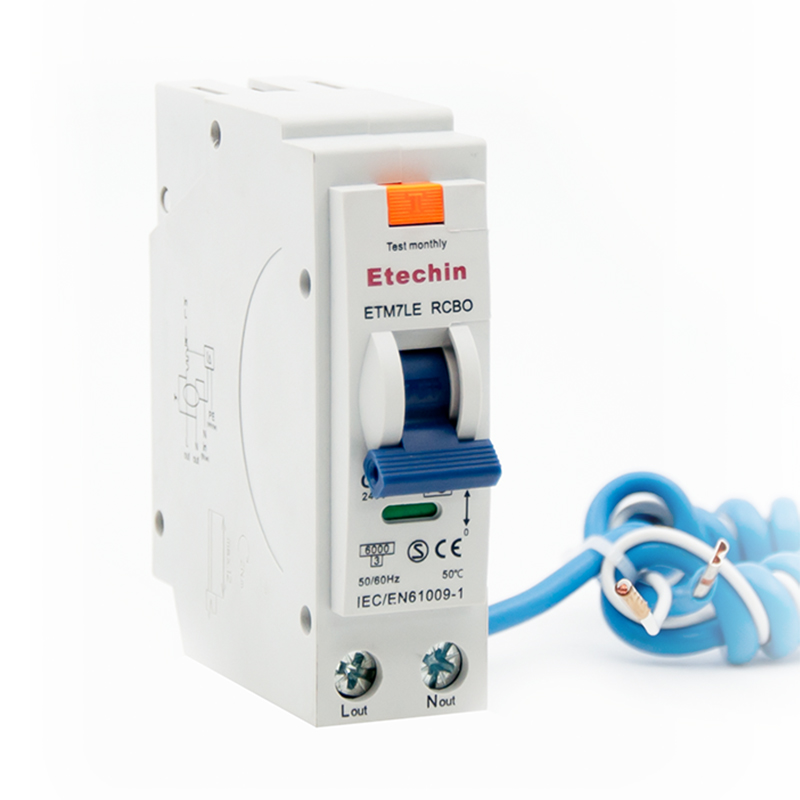

ETM7LE RCBO
ETM7LE RCBO (Residual Current Breaker with Overcurrent Protection)
A compact and reliable protection device combining residual current protection with overload and short-circuit protection, suitable for residential and commercial electrical systems. Available in 1P+N with B or C curve tripping characteristics, and a convenient plug-in design for easy installation.
Rated Current: 6A, 10A, 16A, 20A, 25A, 32A, 40A
Sensitivity: 30mA or 100mA
Breaking Capacity: 6kA or 10kA
Voltage: AC 240/415V
Standards: Complies with IEC/EN 61009-1
OEM manufacturing supported
Ideal for ensuring both leakage and overcurrent protection in a single device.
Product Introduction
The ETM7LE series RCBO (Residual Current Breaker with Overcurrent Protection) is a compact device that combines leakage protection, overload and short-circuit protection, and circuit isolation in one unit. It is ideal for low-voltage terminal distribution in residential, commercial, and industrial environments—including homes, offices, energy systems, communication facilities, lighting panels, and motor circuits.
By detecting leakage currents, the ETM7LE helps protect people from electric shock. At the same time, it safeguards electrical circuits and equipment from potential damage caused by overload or short circuits, making it a reliable safety solution.
✅ Product Features:
Compliance: Built according to IEC 61009-1
Breaking Capacity: 6kA or 10kA
Tripping Curve (Overcurrent): B and C curve options
Rated Current Options:
6A, 10A, 16A — commonly used for lighting circuits
20A, 25A, 32A — suitable for kitchens, bathrooms, and appliances like air conditioners
40A — often used for main protection lines
Residual Current Sensitivity:
10mA, 30mA — recommended for high-risk areas such as bathrooms and kitchens
100mA — suitable for broader circuit protection
Leakage Tripping Types:
AC type: Detects standard alternating leakage currents
A type: Detects both AC and pulsed DC leakage currents
Rated Voltage: 230V / 240V (Phase + Neutral)
Pole Configuration: 1P+N (Single Phase with Neutral)
Terminal Type:
Plug-in at the input side
Screw wiring at the output side
🛡️ Safety & Durability:
IP20 terminal protection to prevent accidental contact during installation
On/Off Indicator: Red for ON, Green for OFF
Operating Temperature Range: -5°C to +50°C
Service Life:
Electrical lifespan: up to 8,000 operations
Mechanical lifespan: up to 20,000 operations
(Exceeding IEC standard requirements)
| Standard | IEC/EN61009-1 |
|---|---|
| No. of poles: | 1P+N (25mm width) |
| Voltage: | 230/240V (Phase & Neutral) |
| Characteristics: | Type B,C |
| Type: | A,AC |
| Rating: | 6,10,16,20,25,32,40 A |
| Sensitivity current: | 10mA, 30 mA, 100 mA |
| Breaking capacity: | 6/10 kA at 240/415 V |
| Residual current off time: | ≤0.1S |
| Electrical Endurance: | 4000 |
| Mechanical Endurance: | 10000 |
| Reference ambient temp： | 50℃ |
| Protection: | Overload, short circuit and leakage |
| Type of terminal: | Plug in type Input |
| Wiring type Output |
