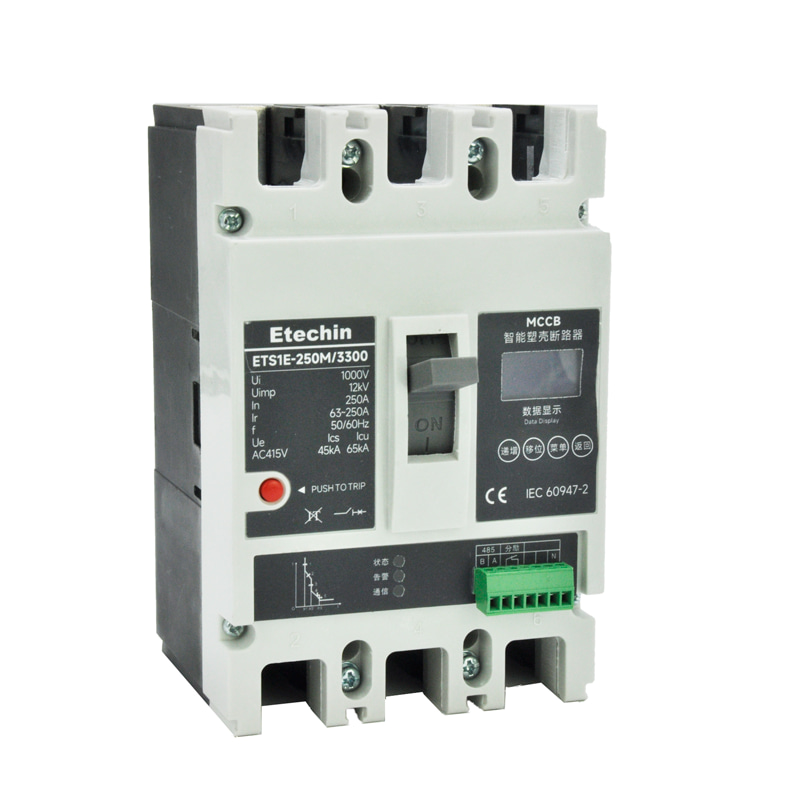

ETS1EY MCCB
ETS1EY MCCB (Moulded Case Circuit Breaker) is a high-capacity circuit protection device designed for industrial and high-demand residential applications. It provides reliable protection against overloads and short circuits, and can also function as a main switch or isolator. With a rated current range of 100A to 800A and a breaking capacity between 10kA and 35kA, MCCBs are ideal for systems where standard MCBs are insufficient. They are commonly used in main distribution boards, capacitor banks, generators, and primary power feeders.
Manufacturer: OEM
Standards: IEC/EN 60947-2
Rated Current: 100–800A
Breaking Capacity: 10kA–35kA
Product Introduction
Compact Frame Sizes
The ETS1EY is available in five miniaturised frame sizes:
125A / 160A / 250A / 630A / 800A
Rated current range: 10A to 800A
These compact units save panel space while offering high performance.
| Basic features | ||||||||||
| Standard | IEC 60947-2 | |||||||||
| Electrical features | ||||||||||
| Rated current In | A | 250(100,125, 140,160,180, 200,225,250) | 400(200,225, 250,315,350, 400) | 630(400,500,630) | 800(630,700,800) | |||||
| Rated operational voltage Ue | V | 415 | ||||||||
| Number of poles | P | 3P / 4P | ||||||||
| Rated insulation voltage | V | 800 | ||||||||
| Breaking capacity | M | H | M | H | M | H | M | H | ||
| Rated ultimate short-circuit breaking capacity(Icu) | kA | 50 | 85 | 75 | 100 | 85 | 100 | 85 | 100 | |
| Rated service short-circuit breaking capacity(Ics) | kA | 35 | 50 | 52 | 65 | 55 | 65 | 55 | 65 | |
| Rated impulse withstand voltage Uimp | 5 | 8 | 10 | 10 | ||||||
| Mechanical life | 8500 | 8500 | 7000 | 4000 | ||||||
| Electrical life | 1500 | 1500 | 1000 | 1000 | ||||||
| Arc distance | mm | ≤ 50 | ≤ 50 | ≤ 100 | ≤ 100 | |||||
| Type | B | |||||||||
| Operating characteristic | connect | 7500 | ||||||||
| disconnect | 15000 | |||||||||
| Outside size (mm) | L | 165/165 | 257/257 | 270/270 | 280/280 | |||||
| W | 107/143 | 150/200 | 180/240 | 210/280 | ||||||
| H | 110/110 | 151/151 | 155/155 | 160/160 | ||||||
